CE Certification Basement Hydraulic Underground Tilting Car Parking Stacker Auto Elevator Pit Vehicle Lift Factories, Products

• Two-Level Space-Saving Design

The CPT-2 provides a 2-level parking solution, doubling parking capacity in the same footprint.

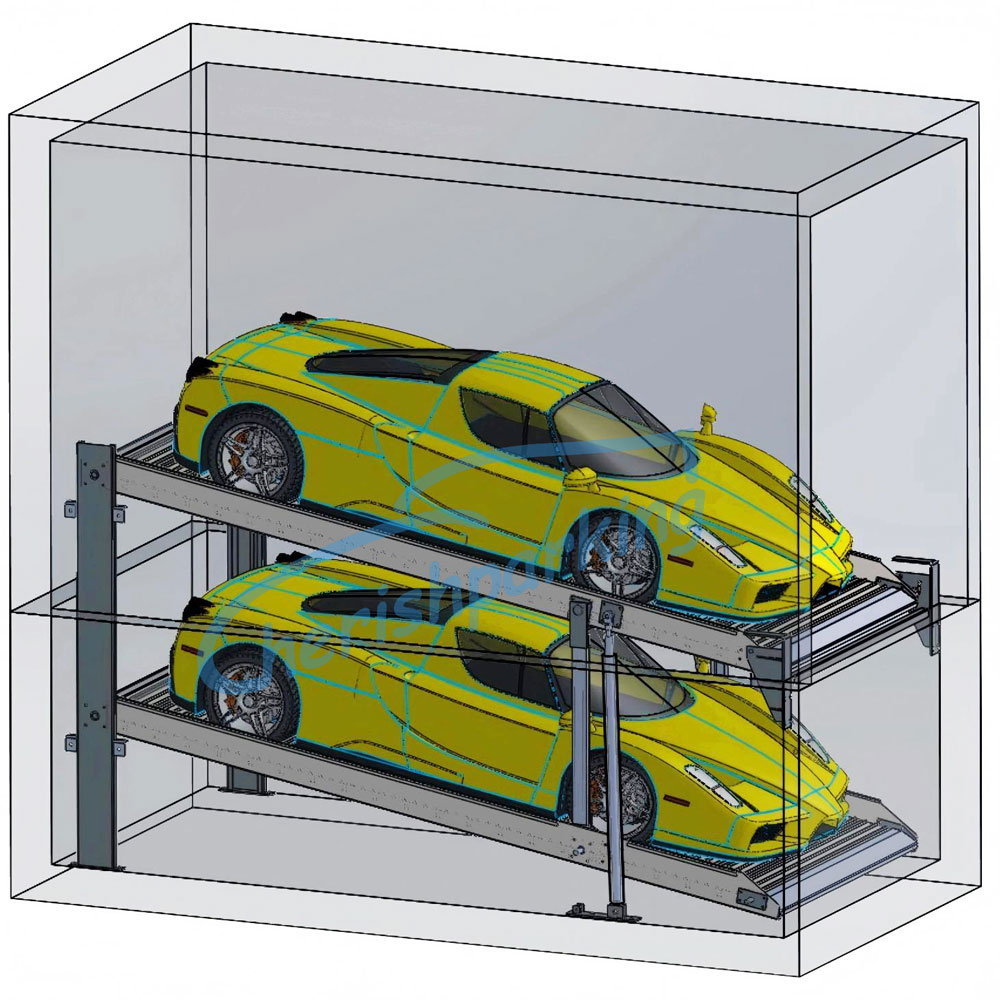

• Innovative Tilted Platform

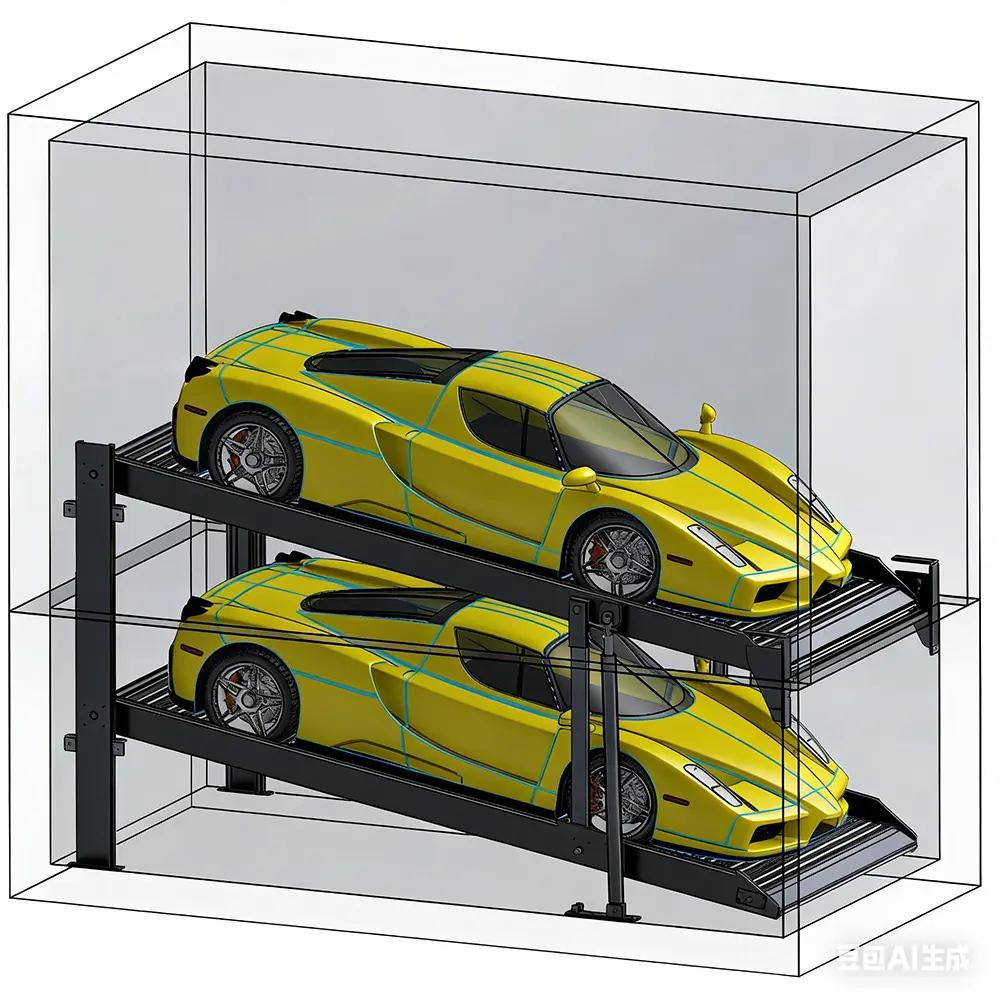

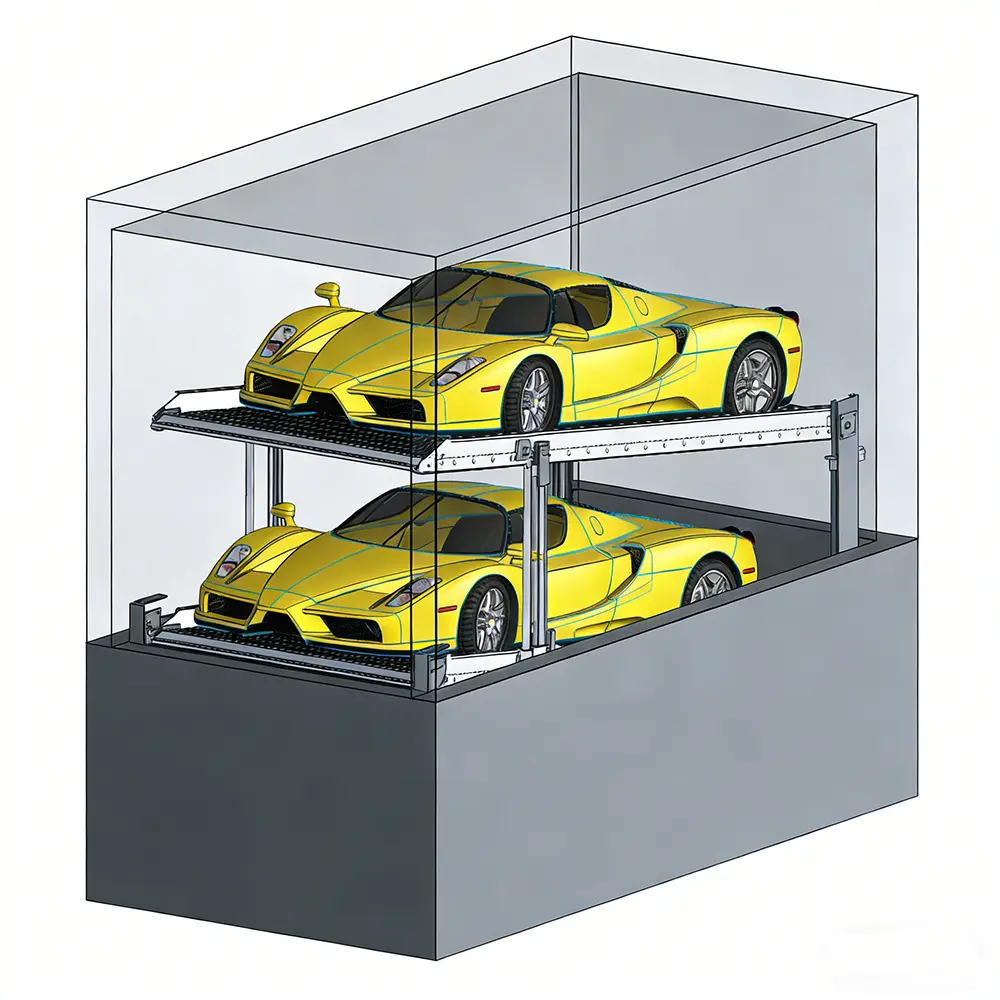

Features a tilted platform design that reduces required pit depth, making installation more flexible.

• Independent Vehicle Access

Upper-level vehicles can be retrieved without moving the ground-level car, ensuring convenient operation.

• Ground Space Maximization

Seamlessly installable in basements or pits, effectively saving and maximizing ground space utilization.

Send Inquiry

Product Description

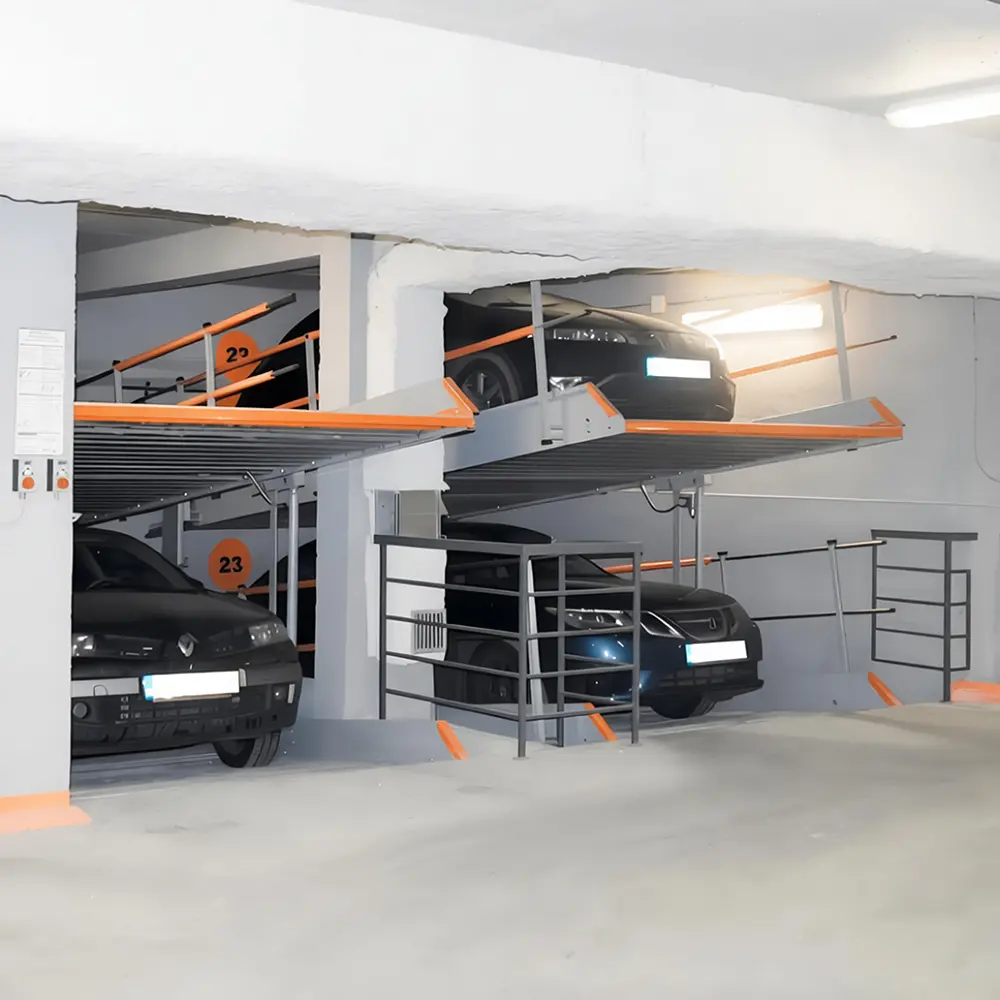

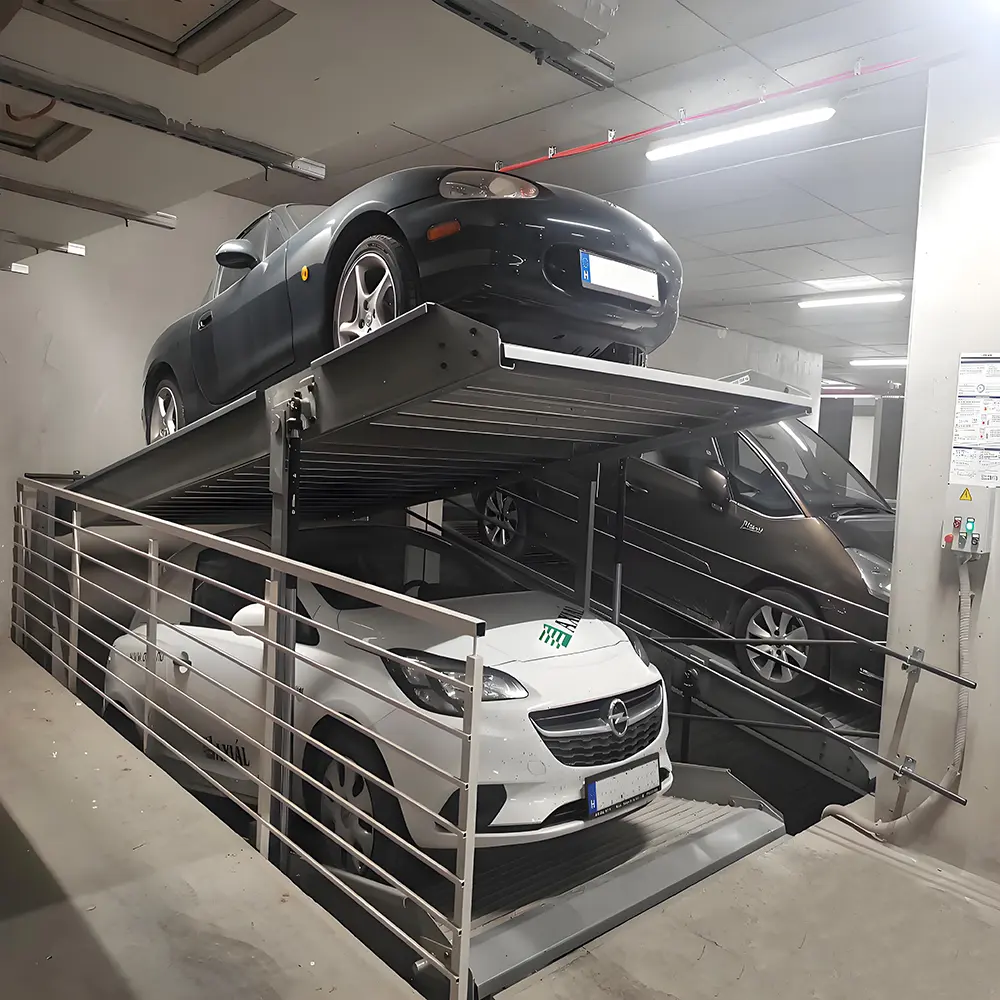

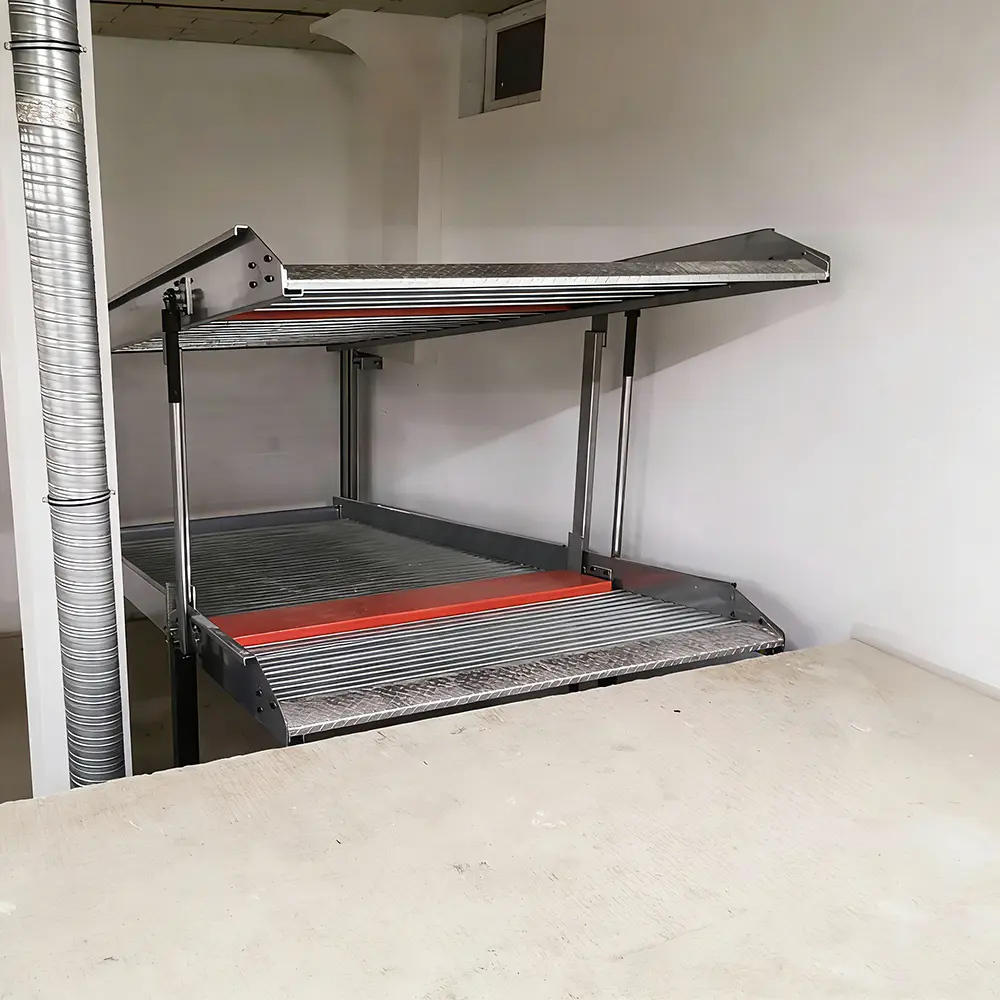

The CPT-2 pit-mounted parking lift offers a two-levels vehicle parking solution. Featuring an innovative tilted platform design with reduced pit depth requirements, it can flexibly accommodate two vehicles. When retrieving the upper-level vehicle, there is no need to move the car parked at ground level. This system can be seamlessly installed in basements or pits, effectively maximizing the utilization of ground space.

Product Specifications

Model No.	CPT-2
Lifting Capacity	2000kgs
Lifting Height	1750mm
Usable Platform width	2330mm
Overall Height	4580mm
Overall Length	5300mm
Overall Width	2700mm
Power Supply/Motor Capacity	380V, 50Hz / 60Hz, 3Ph, 5.5Kw
Lock Release	Electric Release
Drive Mode	Hydraulic Drive + Chain

Product Features

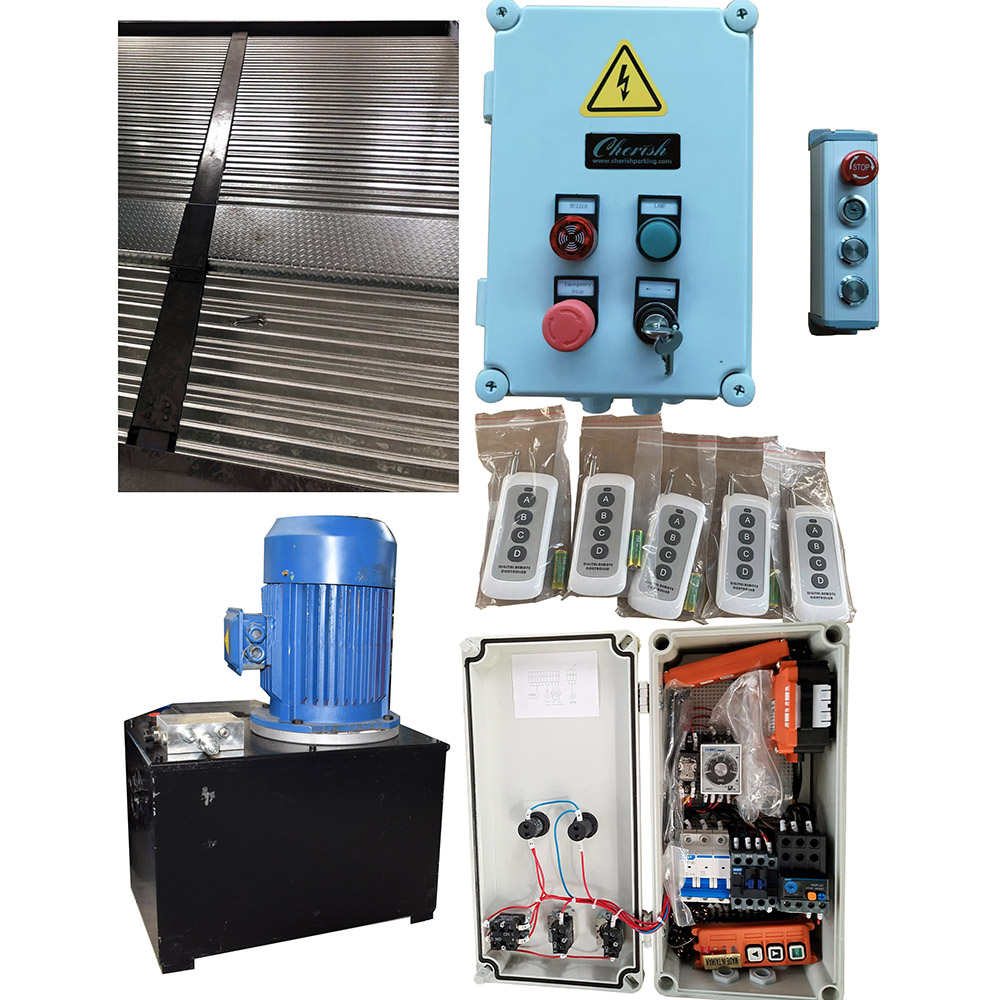

1. Premium Anti-Slip & Durable Platform

Equipped with a galvanized wave plate for excellent slip resistance and long-lasting durability, ensuring safer and more stable vehicle parking.

2. Stable Hydraulic Drive System

Adopts dual master-slave direct-drive hydraulic cylinders for smooth, reliable operation with low maintenance requirements.

3. Independent & Flexible Operation

Each unit comes with an independent hydraulic power unit and control panel, enabling standalone and flexible operation.

4. Strong Load Capacity & Wide Compatibility

With a rated load capacity of 2000 kg, it is suitable for all standard passenger cars.

5. Multi-Layer Safety Protection

Fitted with an electric key switch for enhanced security and access control; automatically cuts off power when the key is released to guarantee operational safety.

6. Space-Saving & Certified Design

Tilted platform design significantly reduces required pit depth, installable in basements or pits to maximize ground space utilization, and fully CE-certified for high safety and performance standards.

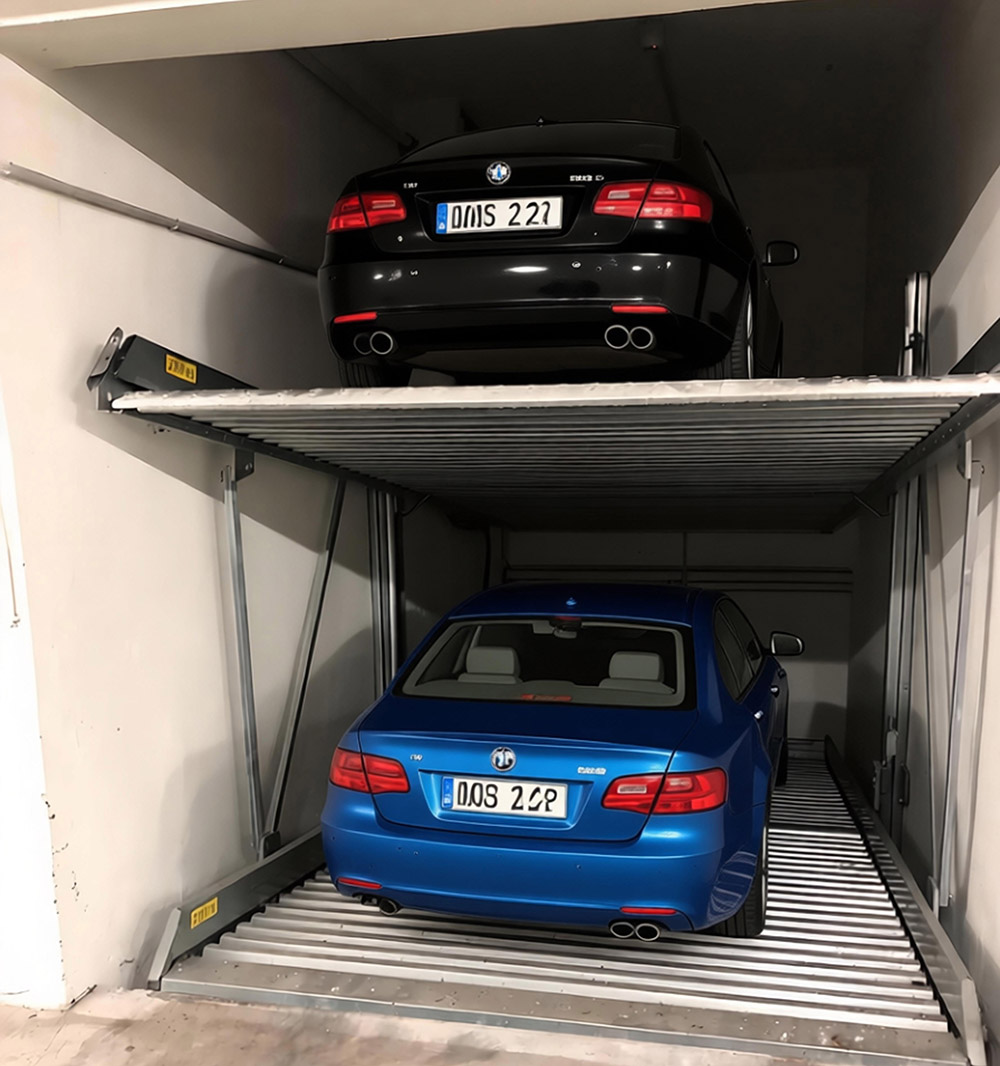

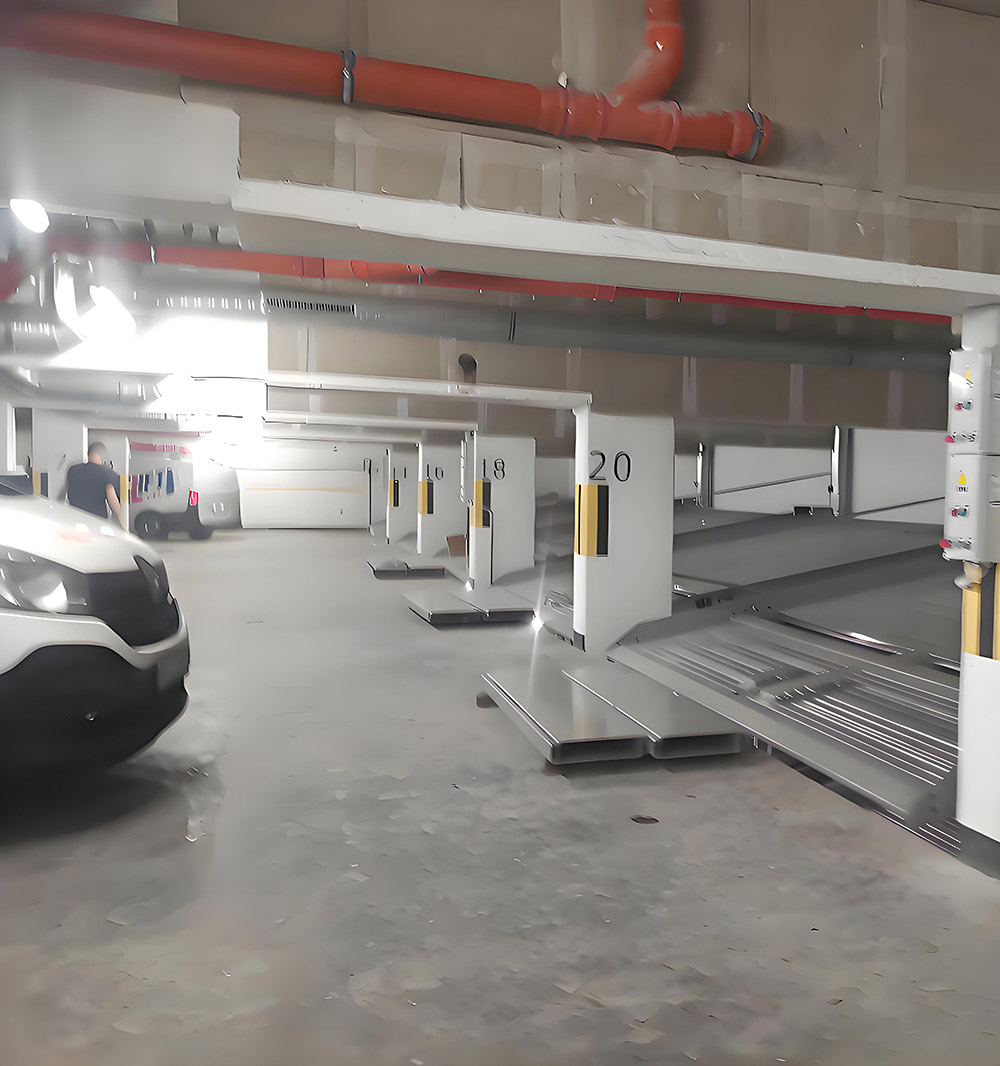

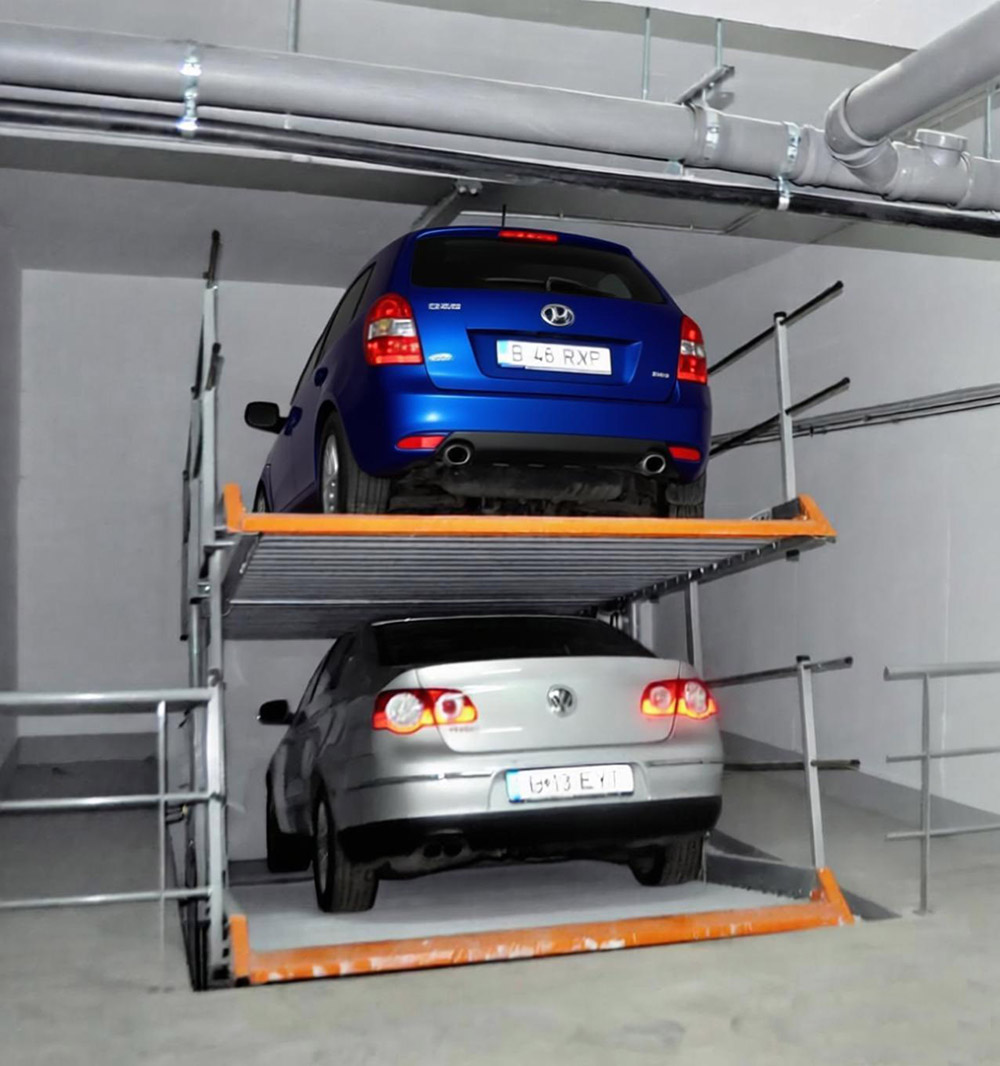

Product Applications

Frequently Asked Questions

Q1: How does the tilted platform design of the CPT-2 help save space?

The innovative tilted platform design reduces the depth required for the installation pit. This makes it ideal for basements or properties with limited vertical space, allowing you to double your parking capacity efficiently.

Q2: Do I need to move the car parked at ground level to retrieve the upper-level vehicle?

No, the CPT-2 system allows independent operation. You can park or retrieve the upper-level vehicle without needing to move the car parked on the ground level.

Q3: What is the maximum lifting capacity of the CPT-2?

The rated lifting capacity of this parking lift is 2000 kg (approx. 4,400 lbs), which is fully compatible with standard passenger vehicles.

Q4: What safety features are integrated into the CPT-2 parking system?

The lift features an electric key switch system to prevent unauthorized access. The power cuts off immediately once the key is released. Additionally, it uses a stable hydraulic drive and chain system and carries a CE certification.

Q5: What power supply and motor specifications are required?

The system runs on a 3-Phase 380V, 50Hz/60Hz power supply, powered by a 5.5Kw motor. Each unit operates independently with its own control setup.
